The Impressive Success Story of the SF8008 Models Forms the Foundation for the Latest Innovations in the Octagon V3 Supreme Series
We proudly present the Octagon SF8008 V3 SUPREME models, introducing a world-first feature—the M.2 interface for the internal integration of M.2 SSDs.
This dual-OS receiver meets all the demands of a multimedia device and now unlocks even more possibilities.
By utilizing a new tuner and demodulator, the already high-quality performance has been further enhanced. The V3 Supreme models set new standards with:
- An advanced tuner and demodulator for optimized reception
- Integrated M.2 slot for internal SSDs
- Built-in dual-band WiFi (2.4/5 GHz) with speeds up to 1200 Mbps
- Bluetooth 5.1
—a groundbreaking combination of power and connectivity.
The Octagon SF8008 V3 SUPREME offers two tuner options, supporting DVB-S2X, DVB-C, and DVB-T2 standards. With a USB 3.0 port, Gigabit LAN, and H.265 video decoding, it delivers a full 4K experience. Discover the new era of 4K with the Octagon SF8008 V3 SUPREME.
The Octagon SF8008 V3 SUPREME 4K UHD receiver features two built-in DVB-S2X satellite & DVB-C/T2 tuners. With impressive processing power (15,000 DMIPS) and lightning-fast channel switching, it provides an outstanding user experience.
Modern Entertainment & Numerous Features
The Octagon SF8008 V3 4K UHD supports multiple images, allows downloading additional plugins, and features HDR, HLG, and H.265 decoding. With Gigabit LAN (1000 Mbps) and a built-in WiFi module, it ensures fast connectivity for high-resolution content. Two WiFi antennas are also included.
The receiver offers versatile playback options with:
- M.2 slot
- USB 3.0 & USB 2.0
- MicroSD slot
- Card reader
Additional ports include HDMI 2.0, AV (audio/video) output, and S/PDIF for digital audio. In standby mode, power consumption is less than 0.5W.
Versatile Applications
- PVR recording function
- Timeshift TV (via internal M.2 SSD or external USB drive)
- Access to YouTube, WiFi, media player & media libraries
- Internet functions & plugin downloads
- Ideal for camping and mobile use
Comprehensive Features
- Dual OS: E2 Linux & Define OS
- DVB-S2X satellite & DVB-C/T2 tuners
- Recording function
- Customizable skin-based user interface
- Many free plugins (extensions & apps) under E2 Linux OS
User-Friendly
- Intuitive multilingual menu
- Advanced EPG (Electronic Program Guide)
- Multiple downloadable images & skins
- Sat-to-IP TV optimization
- E2 Multiroom Client support
Future-Proof
- 4K H.265 HEVC UHD processor
- 8GB eMMC Flash / 1GB DDR4 RAM
- M.2 SSD slot
- HDMI & USB with PVR function
- LAN, WiFi, AV via RCA
- Optimized for Sat-to-IP TV
Metal Housing & Solid Build Quality
KEY FEATURES
- Dual OS: E2 Linux & Define OS Linux
- 4K H.265 HEVC UHD processor (3840×2160)
- Hisilicon Hi3798MV200 (Huawei)
- Quad-Core 64-bit (4x 1.6GHz, 15,000 DMIPS)
- 8GB eMMC Flash / 1GB DDR4 RAM
- M.2 slot (M.2 SSD: M Key – PCIe NVMe)
- Gigabit LAN (1000 Mbps)
- Built-in dual-band WiFi (2.4/5 GHz, up to 1200 Mbps, 2x antennas)
- 4-digit 7-segment display
- CA card reader
- Hardware BlindScan
- DVB-S2X & DVB-C/T2 Combo (2x tuners) + Multistream support
- Multiroom Client & Sat-to-IP Client support
- HDMI 2.0a & USB 3.0
- MicroSD slot
- HDMI CEC support
- Programmable remote control
SPECIAL FEATURES
- DUAL OS: E2 Linux OS & Octagon Define Linux OS
- DVB-S2X 4K UHD & Multistream (T2-MI direct input)
- Symbol rates: 100 – 80,000 SR
- PIP HD & UHD (Picture-in-Picture)
- HDR 10-bit & HLG
- Multi-transcoding & Multiroom
- Sat>IP Client & V-tuner USB dongle
- BlindScan
- Media libraries of public broadcasters
- HW MultiBoot
- FFmpeg HW playback support
- 2160p media playback (H.264 & H.265)
- OTA updates
- DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast-Scan
- *PVR recording (optional)
- 12V input (suitable for camping/mobile use; 12V car adapter not included)
- 0.5W standby power

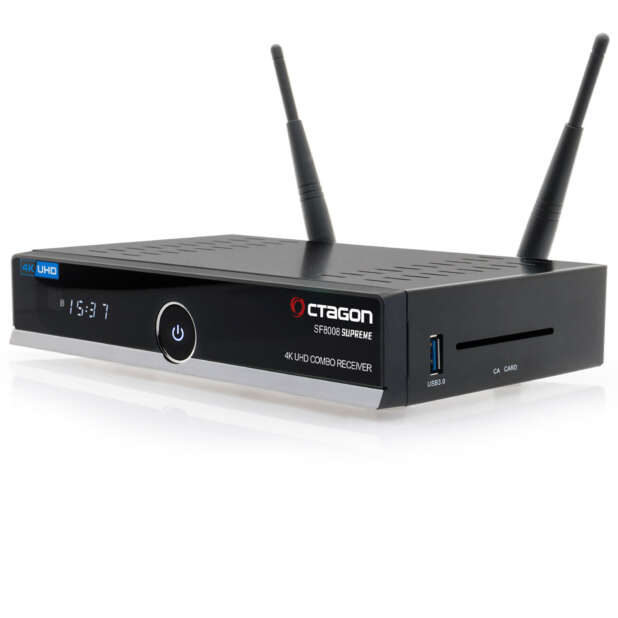

FRONT PANEL
- Power on/off button
- 4-digit 7-segment display
- LED indicator (red/blue)
- IR sensor (infrared receiver)

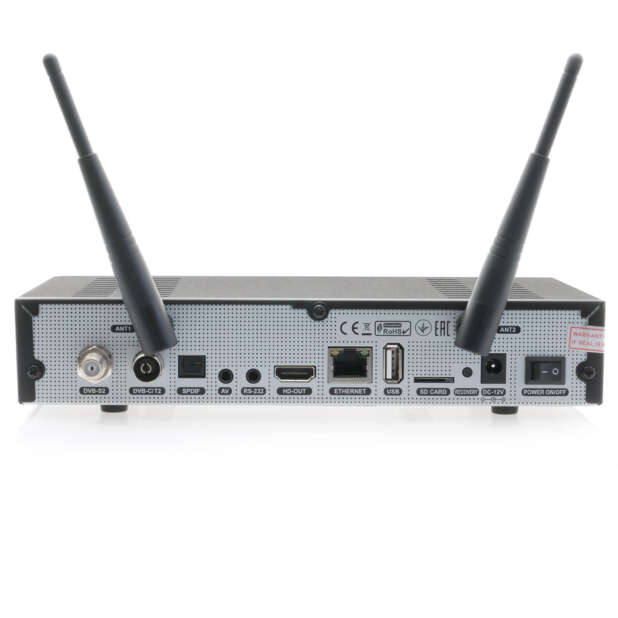

REAR PANEL
- H.265 4K UHD DVB-S2X & DVB-C/T2 tuner (LNB input)
- Dolby S/PDIF
- AV (audio/video) jack (3.5mm to RCA)
- RS-232 port (maintenance & service)
- WiFi (2x antennas)
- HDMI 2.0a output
- USB 2.0 port
- Gigabit LAN (1000 Mbps)
- MicroSD slot
- Recovery (reset) button
- DC 12V power input
- Power switch
RIGHT SIDE
- USB 3.0 port
- CA card reader

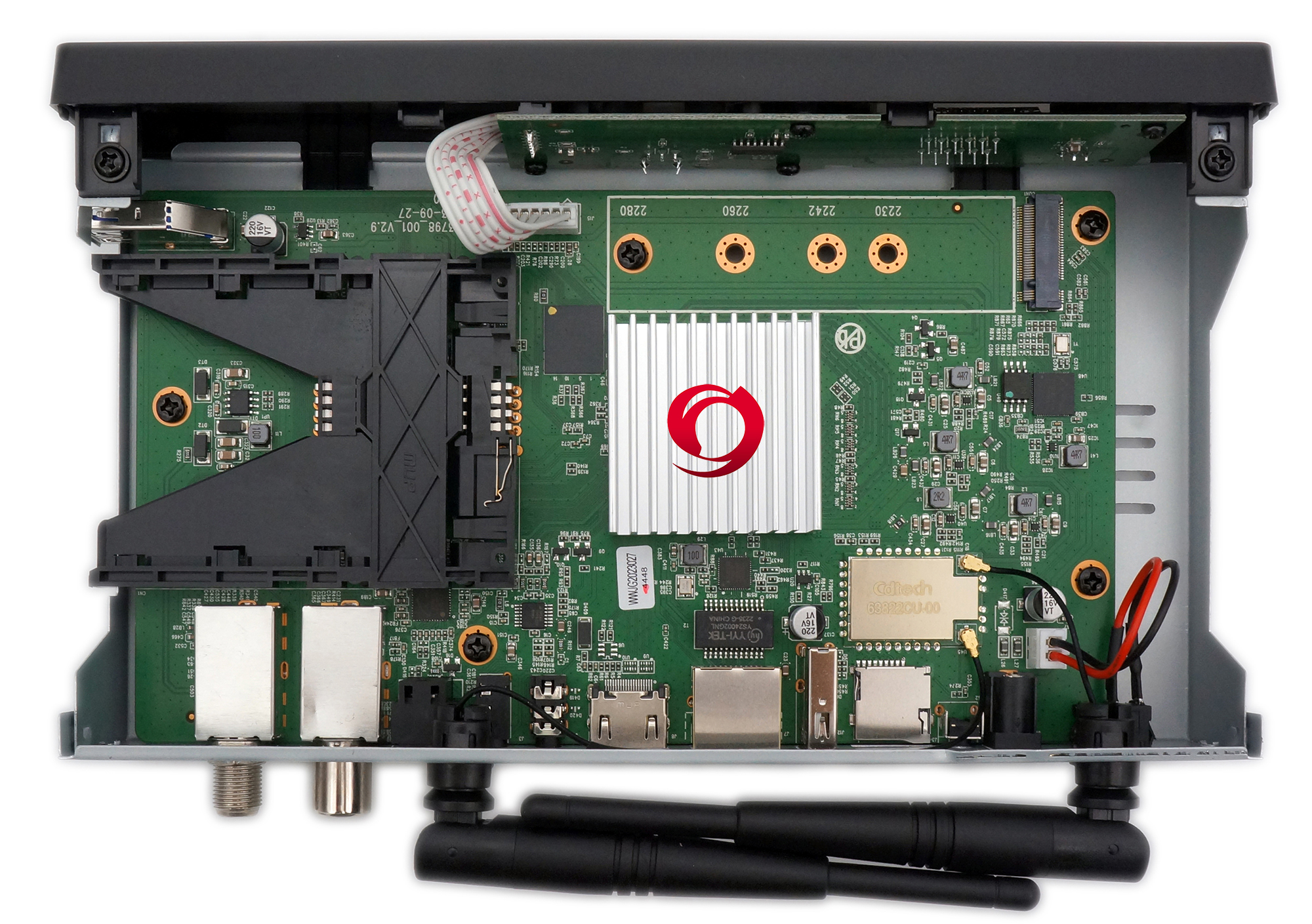

INTERNAL
- M.2 slot for internal SSD (M.2 SSD: M Key – PCIe NVMe)
PACKAGE CONTENTS
- Octagon SF8008 4K V3 SUPREME COMBO receiver

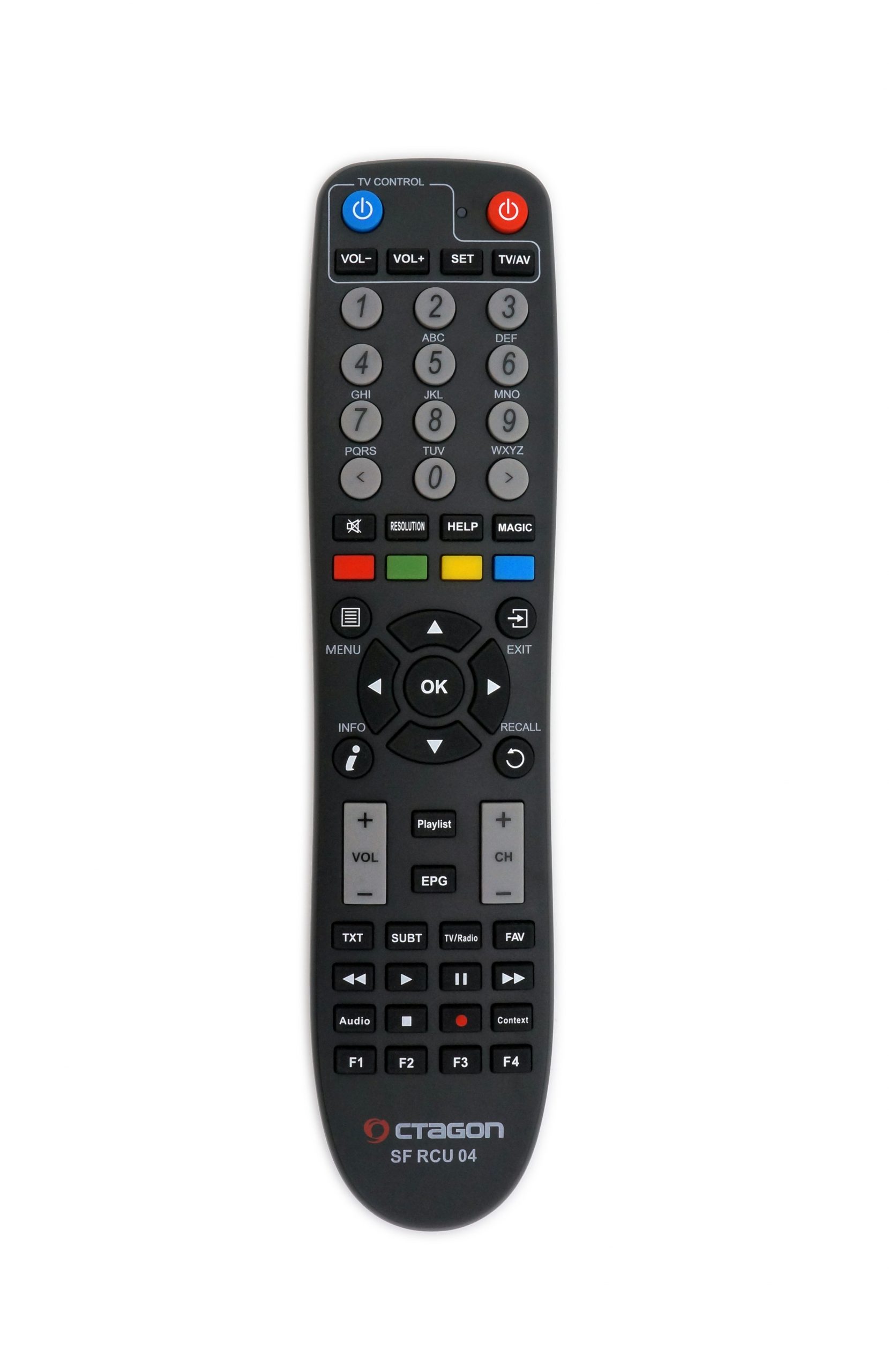

- Programmable remote control
- 2x AAA batteries
- User manual (German & English)
- HDMI cable

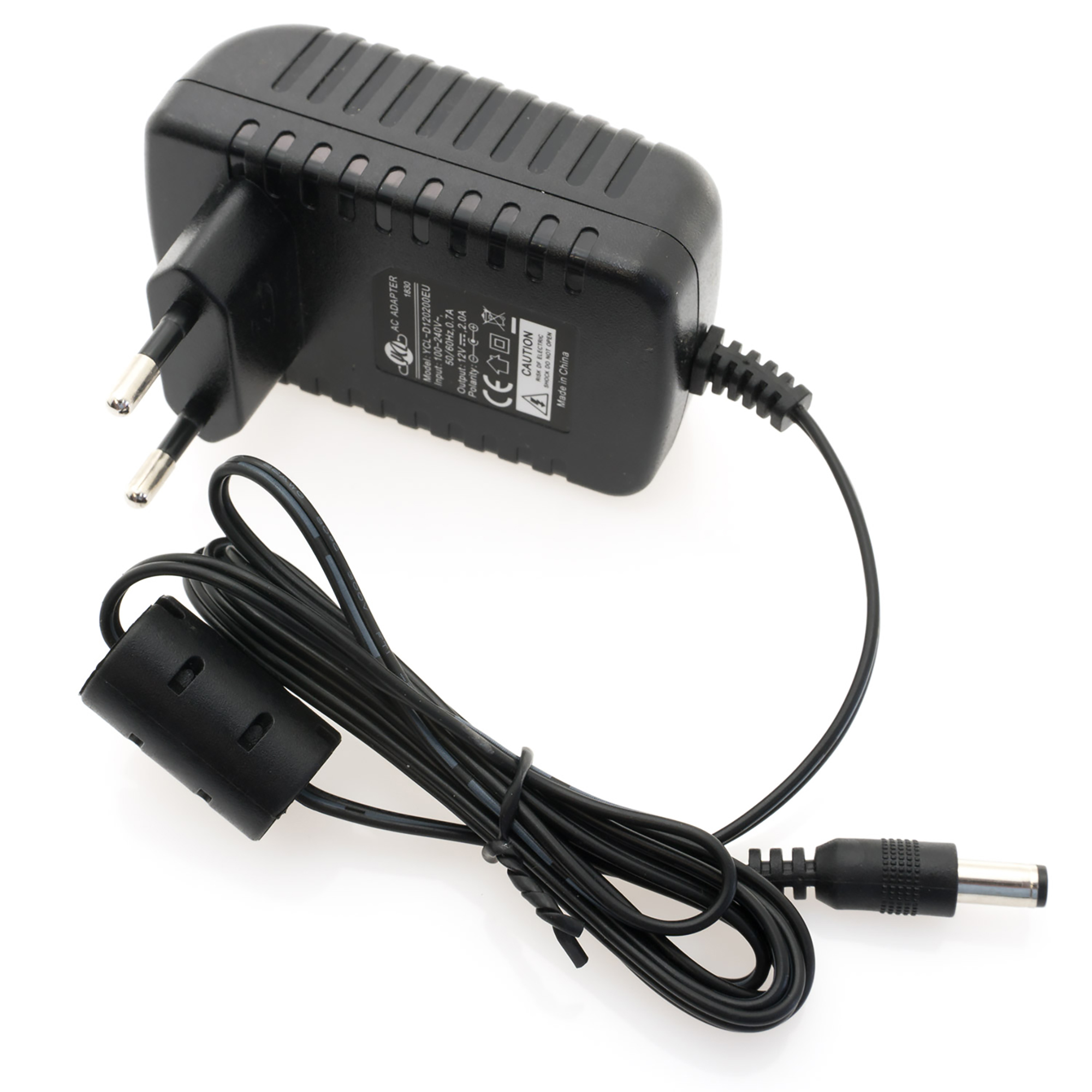

- Power supply

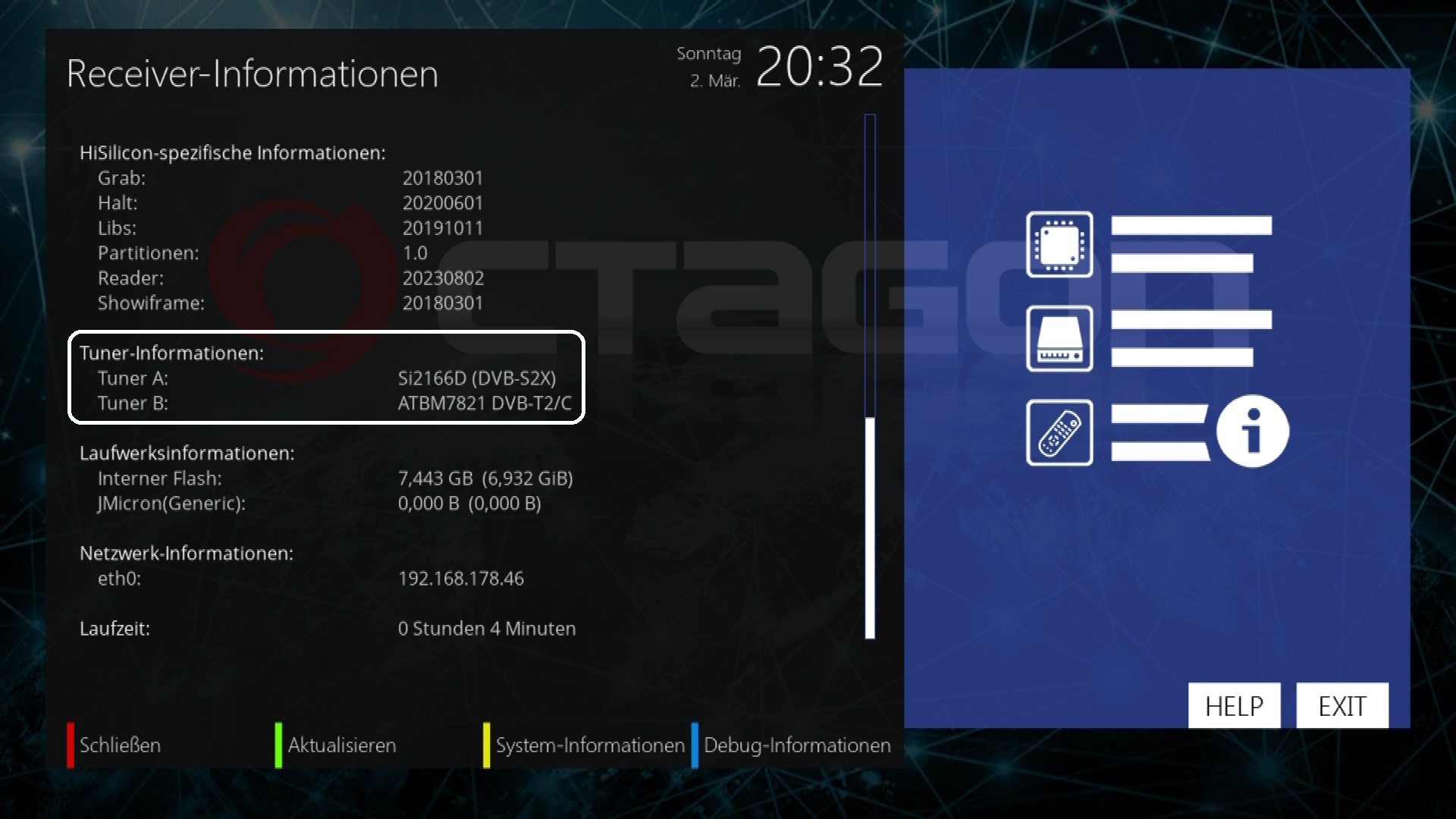

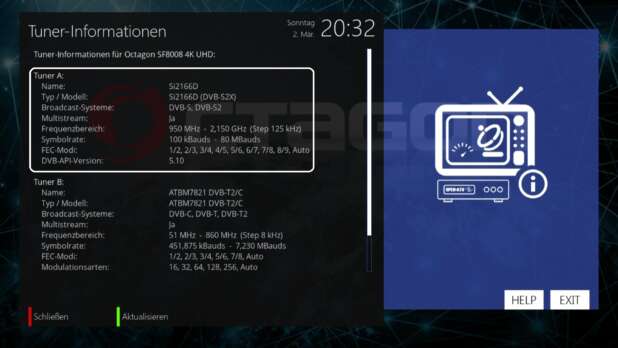

TUNER & DEMODULATOR
- DVB-S2X: Silabs Si2166-D60 & RDA5815m
- DVB-C/T2: Altobeam ATBM7821
ADDITIONAL INFO
- Dimensions (LxWxH): 220 x 125 x 40 mm
- Power supply: DC 12V/2A
- Packaging: 12 units per carton
- EAN barcode: 4262454470617
